program

A vertex_shader and fragment_shader are linked together to produce a OpenGL ES 2 program.

Element Information

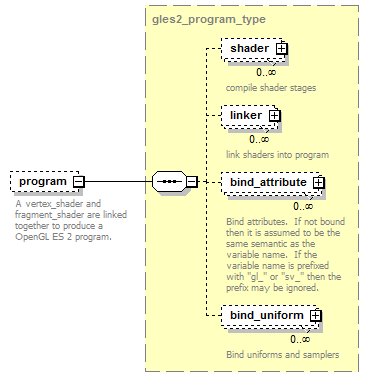

Model

shader* , linker* , bind_attribute* , bind_uniform*

Children: bind_attribute, bind_uniform, linker, shader

Source

<xs:element name="program" type="gles2_program_type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>A vertex_shader and fragment_shader are linked together to produce a OpenGL ES 2 program.</xs:documentation>
  </xs:annotation>
</xs:element>

Sample

< pass xmlns = "http://www.collada.org/2008/03/COLLADASchema" sid = "Pass_0" >

< program>

< shader stage = "VERTEX" >

< sources>

< import ref = "Vertex_Program_E0_P0_VP" />

</ sources>

</ shader>

< shader stage = "FRAGMENT" >

< sources>

< import ref = "Fragment_Program_E0_P0_FP" />

</ sources>

</ shader>

< bind_uniform symbol = "fSpecularPower" >

< param ref = "fSpecularPower_E0_P0" />

</ bind_uniform>

< bind_uniform symbol = "fvAmbient" >

< param ref = "fvAmbient_E0_P0" />
