stencil_func_separate

Element Information

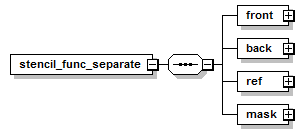

Model

front , back , ref , mask
Children: back, front, mask, ref

Source

<xs:element name="stencil_func_separate">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="front">
        <xs:complexType>
          <xs:attribute name="value" type="gl_func_enum" use="optional" default="ALWAYS"/>
          <xs:attribute name="param" type="xs:NCName" use="optional"/>
        </xs:complexType>
      </xs:element>
      <xs:element name="back">
        <xs:complexType>
          <xs:attribute name="value" type="gl_func_enum" use="optional" default="ALWAYS"/>
          <xs:attribute name="param" type="xs:NCName" use="optional"/>
        </xs:complexType>
      </xs:element>
      <xs:element name="ref">
        <xs:complexType>
          <xs:attribute name="value" type="xs:unsignedByte" use="optional" default="0"/>
          <xs:attribute name="param" type="xs:NCName" use="optional"/>
        </xs:complexType>
      </xs:element>
      <xs:element name="mask">
        <xs:complexType>
          <xs:attribute name="value" type="xs:unsignedByte" use="optional" default="255"/>
          <xs:attribute name="param" type="xs:NCName" use="optional"/>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

Sample
