setparam

Use a series of these to set the members by name.  The ref attribute will be relative to the usertype you are in right now.

Element Information

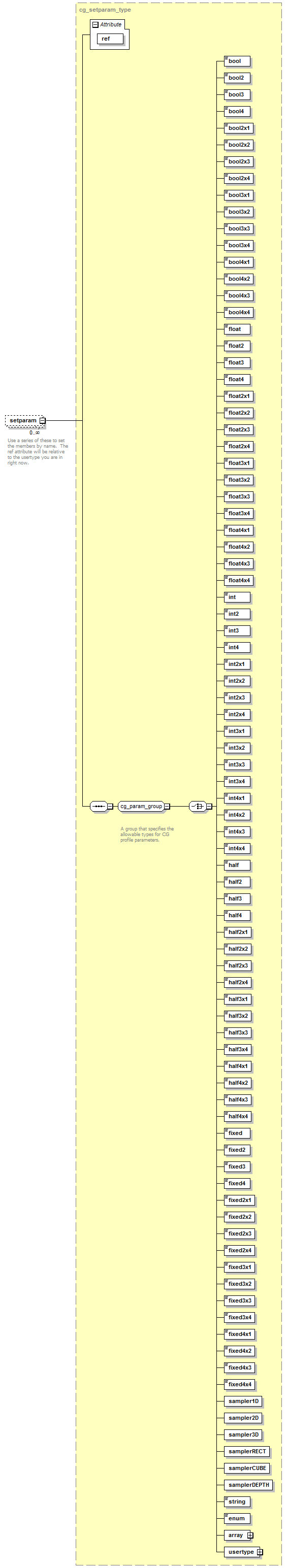

Model

(bool | bool2 | bool3 | bool4 | bool2x1 | bool2x2 | bool2x3 | bool2x4 | bool3x1 | bool3x2 | bool3x3 | bool3x4 | bool4x1 | bool4x2 | bool4x3 | bool4x4 | float | float2 | float3 | float4 | float2x1 | float2x2 | float2x3 | float2x4 | float3x1 | float3x2 | float3x3 | float3x4 | float4x1 | float4x2 | float4x3 | float4x4 | int | int2 | int3 | int4 | int2x1 | int2x2 | int2x3 | int2x4 | int3x1 | int3x2 | int3x3 | int3x4 | int4x1 | int4x2 | int4x3 | int4x4 | half | half2 | half3 | half4 | half2x1 | half2x2 | half2x3 | half2x4 | half3x1 | half3x2 | half3x3 | half3x4 | half4x1 | half4x2 | half4x3 | half4x4 | fixed | fixed2 | fixed3 | fixed4 | fixed2x1 | fixed2x2 | fixed2x3 | fixed2x4 | fixed3x1 | fixed3x2 | fixed3x3 | fixed3x4 | fixed4x1 | fixed4x2 | fixed4x3 | fixed4x4 | sampler1D | sampler2D | sampler3D | samplerRECT | samplerCUBE | samplerDEPTH | string | enum | array | usertype)
Children: array, bool, bool2, bool2x1, bool2x2, bool2x3, bool2x4, bool3, bool3x1, bool3x2, bool3x3, bool3x4, bool4, bool4x1, bool4x2, bool4x3, bool4x4, enum, fixed, fixed2, fixed2x1, fixed2x2, fixed2x3, fixed2x4, fixed3, fixed3x1, fixed3x2, fixed3x3, fixed3x4, fixed4, fixed4x1, fixed4x2, fixed4x3, fixed4x4, float, float2, float2x1, float2x2, float2x3, float2x4, float3, float3x1, float3x2, float3x3, float3x4, float4, float4x1, float4x2, float4x3, float4x4, half, half2, half2x1, half2x2, half2x3, half2x4, half3, half3x1, half3x2, half3x3, half3x4, half4, half4x1, half4x2, half4x3, half4x4, int, int2, int2x1, int2x2, int2x3, int2x4, int3, int3x1, int3x2, int3x3, int3x4, int4, int4x1, int4x2, int4x3, int4x4, sampler1D, sampler2D, sampler3D, samplerCUBE, samplerDEPTH, samplerRECT, string, usertype

Attributes

QName Type Fixed Default Use Inheritable Annotation
ref xs:token required

Source

<xs:element name="setparam" type="cg_setparam_type" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Use a series of these to set the members by name. The ref attribute will be relative to the usertype you are in right now.</xs:documentation>
  </xs:annotation>
</xs:element>

Sample

< instance_effect xmlns = "http://www.collada.org/2008/03/COLLADASchema" url = "#Textured_Bump_E0_MP_FX" >

< technique_hint platform = "PC-OGL" profile = "GLES2" ref = "Textured_Bump_E0_MP_TECH" />

< setparam ref = "fSpecularPower_E0_P0" >

< float>

25

</ float>

</ setparam>

< setparam ref = "fvAmbient_E0_P0" >

< float4>

0.368627 0.368421 0.368421 1

</ float4>

</ setparam>

< setparam ref = "fvDiffuse_E0_P0" >

< float4>

0.886275 0.885003 0.885003 1

</ float4>

</ setparam>

< setparam ref = "fvEyePosition_E0_P0" >

< float3>

0 0 100

</ float3>

</ setparam>

< setparam ref = "fvLightPosition_E0_P0" >

< float3>

-100 100 100

</ float3>

</ setparam>

< setparam ref = "fvSpecular_E0_P0" >

< float4>

0.490196 0.488722 0.488722 1

</ float4>

</ setparam>

</ instance_effect>
