T_UPDATE_PRICES

Element Information

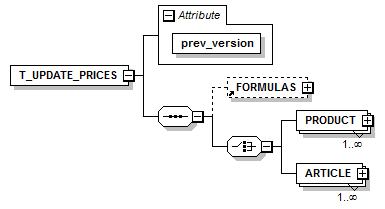

Model

FORMULAS{0,1} , (PRODUCT+ | ARTICLE+)
Children: ARTICLE, FORMULAS, PRODUCT

Attributes

QName Type Fixed Default Use Inheritable Annotation
prev_version dtINTEGER required

Used By

Element BMECAT

Source

<xsd:element name="T_UPDATE_PRICES">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="FORMULAS" minOccurs="0"/>
      <xsd:choice>
        <xsd:element name="PRODUCT" maxOccurs="unbounded">
          <xsd:complexType>
            <xsd:sequence>
              <xsd:element ref="SUPPLIER_PID"/>
              <xsd:element ref="SUPPLIER_IDREF" minOccurs="0"/>
              <xsd:element ref="PRODUCT_PRICE_DETAILS" maxOccurs="unbounded"/>
              <xsd:element ref="USER_DEFINED_EXTENSIONS" minOccurs="0"/>
            </xsd:sequence>
            <xsd:attribute name="mode" use="optional" default="update">
              <xsd:simpleType>
                <xsd:restriction base="dtSTRING">
                  <xsd:minLength value="1"/>
                  <xsd:maxLength value="20"/>
                  <xsd:enumeration value="update"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:attribute>
          </xsd:complexType>
        </xsd:element>
        <xsd:element name="ARTICLE" maxOccurs="unbounded">
          <xsd:complexType>
            <xsd:sequence>
              <xsd:element ref="SUPPLIER_AID"/>
              <xsd:element ref="SUPPLIER_IDREF" minOccurs="0"/>
              <xsd:element ref="ARTICLE_PRICE_DETAILS" maxOccurs="unbounded"/>
              <xsd:element ref="USER_DEFINED_EXTENSIONS" minOccurs="0"/>
            </xsd:sequence>
            <xsd:attribute name="mode" use="optional" default="update">
              <xsd:simpleType>
                <xsd:restriction base="dtSTRING">
                  <xsd:minLength value="1"/>
                  <xsd:maxLength value="20"/>
                  <xsd:enumeration value="update"/>
                </xsd:restriction>
              </xsd:simpleType>
            </xsd:attribute>
          </xsd:complexType>
        </xsd:element>
      </xsd:choice>
    </xsd:sequence>
    <xsd:attribute name="prev_version" type="dtINTEGER" use="required"/>
  </xsd:complexType>
</xsd:element>

Sample
