PREDEFINED_CONFIG

Element Information

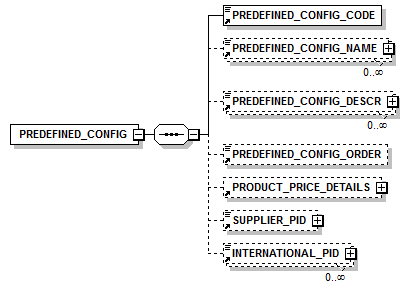

Model

PREDEFINED_CONFIG_CODE , PREDEFINED_CONFIG_NAME* , PREDEFINED_CONFIG_DESCR* , PREDEFINED_CONFIG_ORDER{0,1} , PRODUCT_PRICE_DETAILS{0,1} , SUPPLIER_PID{0,1} , INTERNATIONAL_PID*
Children: INTERNATIONAL_PID, PREDEFINED_CONFIG_CODE, PREDEFINED_CONFIG_DESCR, PREDEFINED_CONFIG_NAME, PREDEFINED_CONFIG_ORDER, PRODUCT_PRICE_DETAILS, SUPPLIER_PID

Used By

Element PREDEFINED_CONFIGS

Source

<xsd:element name="PREDEFINED_CONFIG">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="PREDEFINED_CONFIG_CODE"/>
      <xsd:element ref="PREDEFINED_CONFIG_NAME" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="PREDEFINED_CONFIG_DESCR" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="PREDEFINED_CONFIG_ORDER" minOccurs="0"/>
      <xsd:element ref="PRODUCT_PRICE_DETAILS" minOccurs="0"/>
      <xsd:element ref="SUPPLIER_PID" minOccurs="0"/>
      <xsd:element ref="INTERNATIONAL_PID" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

Sample
