CONFIG_STEP

Element Information

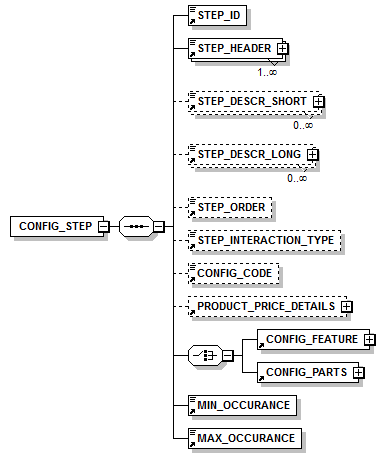

Model

STEP_ID , STEP_HEADER+ , STEP_DESCR_SHORT* , STEP_DESCR_LONG* , STEP_ORDER{0,1} , STEP_INTERACTION_TYPE{0,1} , CONFIG_CODE{0,1} , PRODUCT_PRICE_DETAILS{0,1} , (CONFIG_FEATURE | CONFIG_PARTS) , MIN_OCCURANCE , MAX_OCCURANCE
Children: CONFIG_CODE, CONFIG_FEATURE, CONFIG_PARTS, MAX_OCCURANCE, MIN_OCCURANCE, PRODUCT_PRICE_DETAILS, STEP_DESCR_LONG, STEP_DESCR_SHORT, STEP_HEADER, STEP_ID, STEP_INTERACTION_TYPE, STEP_ORDER

Used By

Element PRODUCT_CONFIG_DETAILS

Source

<xsd:element name="CONFIG_STEP">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="STEP_ID"/>
      <xsd:element ref="STEP_HEADER" maxOccurs="unbounded"/>
      <xsd:element ref="STEP_DESCR_SHORT" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="STEP_DESCR_LONG" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="STEP_ORDER" minOccurs="0"/>
      <xsd:element ref="STEP_INTERACTION_TYPE" minOccurs="0"/>
      <xsd:element ref="CONFIG_CODE" minOccurs="0"/>
      <xsd:element ref="PRODUCT_PRICE_DETAILS" minOccurs="0"/>
      <xsd:choice>
        <xsd:element ref="CONFIG_FEATURE"/>
        <xsd:element ref="CONFIG_PARTS"/>
      </xsd:choice>
      <xsd:element ref="MIN_OCCURANCE"/>
      <xsd:element ref="MAX_OCCURANCE"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

Sample
