CLASSIFICATION_SYSTEM

Element Information

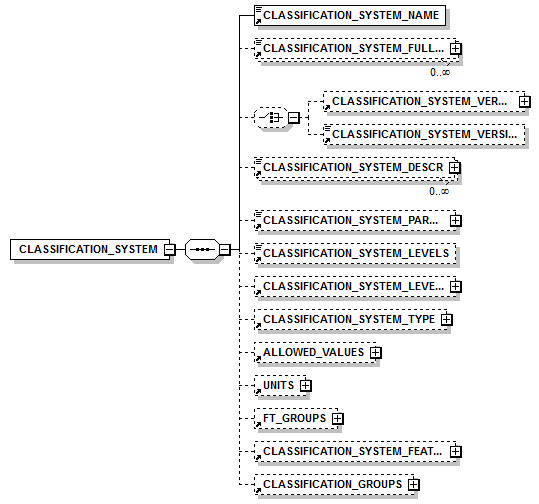

Model

CLASSIFICATION_SYSTEM_NAME , CLASSIFICATION_SYSTEM_FULLNAME* , (CLASSIFICATION_SYSTEM_VERSION_DETAILS{0,1} | CLASSIFICATION_SYSTEM_VERSION{0,1}) , CLASSIFICATION_SYSTEM_DESCR* , CLASSIFICATION_SYSTEM_PARTY_IDREF{0,1} , CLASSIFICATION_SYSTEM_LEVELS{0,1} , CLASSIFICATION_SYSTEM_LEVEL_NAMES{0,1} , CLASSIFICATION_SYSTEM_TYPE{0,1} , ALLOWED_VALUES{0,1} , UNITS{0,1} , FT_GROUPS{0,1} , CLASSIFICATION_SYSTEM_FEATURE_TEMPLATES{0,1} , CLASSIFICATION_GROUPS{0,1}
Children: ALLOWED_VALUES, CLASSIFICATION_GROUPS, CLASSIFICATION_SYSTEM_DESCR, CLASSIFICATION_SYSTEM_FEATURE_TEMPLATES, CLASSIFICATION_SYSTEM_FULLNAME, CLASSIFICATION_SYSTEM_LEVELS, CLASSIFICATION_SYSTEM_LEVEL_NAMES, CLASSIFICATION_SYSTEM_NAME, CLASSIFICATION_SYSTEM_PARTY_IDREF, CLASSIFICATION_SYSTEM_TYPE, CLASSIFICATION_SYSTEM_VERSION, CLASSIFICATION_SYSTEM_VERSION_DETAILS, FT_GROUPS, UNITS

Used By

Element T_NEW_CATALOG

Source

<xsd:element name="CLASSIFICATION_SYSTEM">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="CLASSIFICATION_SYSTEM_NAME"/>
      <xsd:element ref="CLASSIFICATION_SYSTEM_FULLNAME" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:choice minOccurs="0">
        <xsd:element ref="CLASSIFICATION_SYSTEM_VERSION_DETAILS" minOccurs="0"/>
        <xsd:element ref="CLASSIFICATION_SYSTEM_VERSION" minOccurs="0"/>
      </xsd:choice>
      <xsd:element ref="CLASSIFICATION_SYSTEM_DESCR" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="CLASSIFICATION_SYSTEM_PARTY_IDREF" minOccurs="0"/>
      <xsd:element ref="CLASSIFICATION_SYSTEM_LEVELS" minOccurs="0"/>
      <xsd:element ref="CLASSIFICATION_SYSTEM_LEVEL_NAMES" minOccurs="0"/>
      <xsd:element ref="CLASSIFICATION_SYSTEM_TYPE" minOccurs="0"/>
      <xsd:element ref="ALLOWED_VALUES" minOccurs="0"/>
      <xsd:element ref="UNITS" minOccurs="0"/>
      <xsd:element ref="FT_GROUPS" minOccurs="0"/>
      <xsd:element ref="CLASSIFICATION_SYSTEM_FEATURE_TEMPLATES" minOccurs="0"/>
      <xsd:element ref="CLASSIFICATION_GROUPS" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

Sample
