CLASSIFICATION_GROUP

Element Information

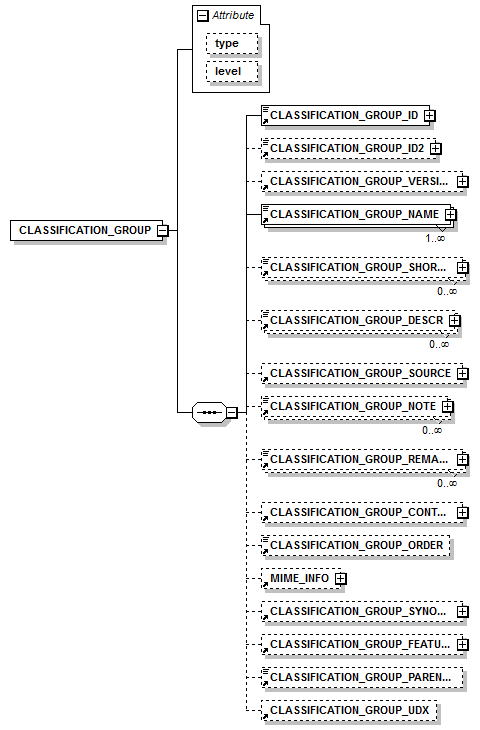

Model

CLASSIFICATION_GROUP_ID , CLASSIFICATION_GROUP_ID2{0,1} , CLASSIFICATION_GROUP_VERSION{0,1} , CLASSIFICATION_GROUP_NAME+ , CLASSIFICATION_GROUP_SHORTNAME* , CLASSIFICATION_GROUP_DESCR* , CLASSIFICATION_GROUP_SOURCE{0,1} , CLASSIFICATION_GROUP_NOTE* , CLASSIFICATION_GROUP_REMARK* , CLASSIFICATION_GROUP_CONTACTS{0,1} , CLASSIFICATION_GROUP_ORDER{0,1} , MIME_INFO{0,1} , CLASSIFICATION_GROUP_SYNONYMS{0,1} , CLASSIFICATION_GROUP_FEATURE_TEMPLATES{0,1} , CLASSIFICATION_GROUP_PARENT_ID{0,1} , CLASSIFICATION_GROUP_UDX{0,1}
Children: CLASSIFICATION_GROUP_CONTACTS, CLASSIFICATION_GROUP_DESCR, CLASSIFICATION_GROUP_FEATURE_TEMPLATES, CLASSIFICATION_GROUP_ID, CLASSIFICATION_GROUP_ID2, CLASSIFICATION_GROUP_NAME, CLASSIFICATION_GROUP_NOTE, CLASSIFICATION_GROUP_ORDER, CLASSIFICATION_GROUP_PARENT_ID, CLASSIFICATION_GROUP_REMARK, CLASSIFICATION_GROUP_SHORTNAME, CLASSIFICATION_GROUP_SOURCE, CLASSIFICATION_GROUP_SYNONYMS, CLASSIFICATION_GROUP_UDX, CLASSIFICATION_GROUP_VERSION, MIME_INFO

Attributes

QName Type Fixed Default Use Inheritable Annotation
level dtCOUNT optional
type restriction of dtSTRING optional

Used By

Element CLASSIFICATION_GROUPS

Source

<xsd:element name="CLASSIFICATION_GROUP">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="CLASSIFICATION_GROUP_ID"/>
      <xsd:element ref="CLASSIFICATION_GROUP_ID2" minOccurs="0"/>
      <xsd:element ref="CLASSIFICATION_GROUP_VERSION" minOccurs="0"/>
      <xsd:element ref="CLASSIFICATION_GROUP_NAME" maxOccurs="unbounded"/>
      <xsd:element ref="CLASSIFICATION_GROUP_SHORTNAME" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="CLASSIFICATION_GROUP_DESCR" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="CLASSIFICATION_GROUP_SOURCE" minOccurs="0"/>
      <xsd:element ref="CLASSIFICATION_GROUP_NOTE" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="CLASSIFICATION_GROUP_REMARK" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="CLASSIFICATION_GROUP_CONTACTS" minOccurs="0"/>
      <xsd:element ref="CLASSIFICATION_GROUP_ORDER" minOccurs="0"/>
      <xsd:element ref="MIME_INFO" minOccurs="0"/>
      <xsd:element ref="CLASSIFICATION_GROUP_SYNONYMS" minOccurs="0"/>
      <xsd:element ref="CLASSIFICATION_GROUP_FEATURE_TEMPLATES" minOccurs="0"/>
      <xsd:element ref="CLASSIFICATION_GROUP_PARENT_ID" minOccurs="0"/>
      <xsd:element ref="CLASSIFICATION_GROUP_UDX" minOccurs="0"/>
    </xsd:sequence>
    <xsd:attribute name="type" use="optional">
      <xsd:simpleType>
        <xsd:restriction base="dtSTRING">
          <xsd:minLength value="1"/>
          <xsd:maxLength value="4"/>
          <xsd:enumeration value="leaf"/>
          <xsd:enumeration value="node"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute name="level" type="dtCOUNT" use="optional"/>
  </xsd:complexType>
</xsd:element>

Sample
