CATALOG_STRUCTURE

Element Information

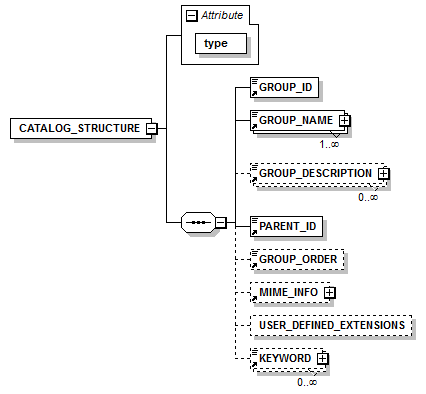

Model

GROUP_ID , GROUP_NAME+ , GROUP_DESCRIPTION* , PARENT_ID , GROUP_ORDER{0,1} , MIME_INFO{0,1} , USER_DEFINED_EXTENSIONS{0,1} , KEYWORD*
Children: GROUP_DESCRIPTION, GROUP_ID, GROUP_NAME, GROUP_ORDER, KEYWORD, MIME_INFO, PARENT_ID, USER_DEFINED_EXTENSIONS

Attributes

QName Type Fixed Default Use Inheritable Annotation
type restriction of dtSTRING required

Used By

Element CATALOG_GROUP_SYSTEM

Source

<xsd:element name="CATALOG_STRUCTURE">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="GROUP_ID"/>
      <xsd:element ref="GROUP_NAME" maxOccurs="unbounded"/>
      <xsd:element ref="GROUP_DESCRIPTION" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="PARENT_ID"/>
      <xsd:element ref="GROUP_ORDER" minOccurs="0"/>
      <xsd:element ref="MIME_INFO" minOccurs="0"/>
      <xsd:element name="USER_DEFINED_EXTENSIONS" type="udxCATALOGGROUP" minOccurs="0"/>
      <xsd:element ref="KEYWORD" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
    <xsd:attribute name="type" use="required">
      <xsd:simpleType>
        <xsd:restriction base="dtSTRING">
          <xsd:minLength value="1"/>
          <xsd:maxLength value="20"/>
          <xsd:enumeration value="leaf"/>
          <xsd:enumeration value="node"/>
          <xsd:enumeration value="root"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:attribute>
  </xsd:complexType>
</xsd:element>

Sample
