ARTICLE_REFERENCE

Element Information

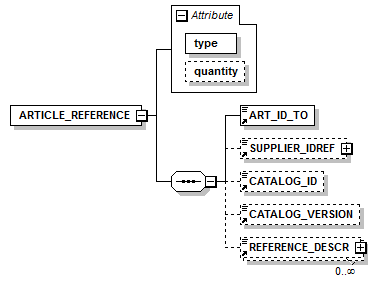

Model

ART_ID_TO , SUPPLIER_IDREF{0,1} , CATALOG_ID{0,1} , CATALOG_VERSION{0,1} , REFERENCE_DESCR*
Children: ART_ID_TO, CATALOG_ID, CATALOG_VERSION, REFERENCE_DESCR, SUPPLIER_IDREF

Attributes

QName Type Fixed Default Use Inheritable Annotation
quantity dtINTEGER optional
type restriction of dtSTRING required

Used By

Elements T_NEW_CATALOG/ARTICLE, T_UPDATE_PRODUCTS/ARTICLE

Source

<xsd:element name="ARTICLE_REFERENCE">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="ART_ID_TO"/>
      <xsd:element ref="SUPPLIER_IDREF" minOccurs="0"/>
      <xsd:element ref="CATALOG_ID" minOccurs="0"/>
      <xsd:element ref="CATALOG_VERSION" minOccurs="0"/>
      <xsd:element ref="REFERENCE_DESCR" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
    <xsd:attribute name="type" use="required">
      <xsd:simpleType>
        <xsd:restriction base="dtSTRING">
          <xsd:minLength value="1"/>
          <xsd:maxLength value="20"/>
          <xsd:enumeration value="accessories"/>
          <xsd:enumeration value="base_product"/>
          <xsd:enumeration value="consists_of"/>
          <xsd:enumeration value="diff_orderunit"/>
          <xsd:enumeration value="followup"/>
          <xsd:enumeration value="mandatory"/>
          <xsd:enumeration value="similar"/>
          <xsd:enumeration value="select"/>
          <xsd:enumeration value="sparepart"/>
          <xsd:enumeration value="others"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute name="quantity" type="dtINTEGER" use="optional"/>
  </xsd:complexType>
</xsd:element>
