ARTICLE_ORDER_DETAILS

Element Information

Model

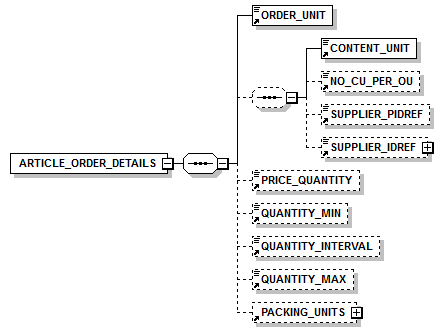

ORDER_UNIT , CONTENT_UNIT , NO_CU_PER_OU{0,1} , SUPPLIER_PIDREF{0,1} , SUPPLIER_IDREF{0,1} , PRICE_QUANTITY{0,1} , QUANTITY_MIN{0,1} , QUANTITY_INTERVAL{0,1} , QUANTITY_MAX{0,1} , PACKING_UNITS{0,1}
Children: CONTENT_UNIT, NO_CU_PER_OU, ORDER_UNIT, PACKING_UNITS, PRICE_QUANTITY, QUANTITY_INTERVAL, QUANTITY_MAX, QUANTITY_MIN, SUPPLIER_IDREF, SUPPLIER_PIDREF

Used By

Elements T_NEW_CATALOG/ARTICLE, T_UPDATE_PRODUCTS/ARTICLE

Source

<xsd:element name="ARTICLE_ORDER_DETAILS">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="ORDER_UNIT"/>
      <xsd:sequence minOccurs="0">
        <xsd:element ref="CONTENT_UNIT"/>
        <xsd:element ref="NO_CU_PER_OU" minOccurs="0"/>
        <xsd:element ref="SUPPLIER_PIDREF" minOccurs="0"/>
        <xsd:element ref="SUPPLIER_IDREF" minOccurs="0"/>
      </xsd:sequence>
      <xsd:element ref="PRICE_QUANTITY" minOccurs="0"/>
      <xsd:element ref="QUANTITY_MIN" minOccurs="0"/>
      <xsd:element ref="QUANTITY_INTERVAL" minOccurs="0"/>
      <xsd:element ref="QUANTITY_MAX" minOccurs="0"/>
      <xsd:element ref="PACKING_UNITS" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

Sample
