ALLOWED_VALUE

Element Information

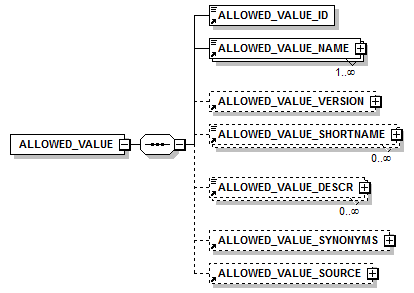

Model

ALLOWED_VALUE_ID , ALLOWED_VALUE_NAME+ , ALLOWED_VALUE_VERSION{0,1} , ALLOWED_VALUE_SHORTNAME* , ALLOWED_VALUE_DESCR* , ALLOWED_VALUE_SYNONYMS{0,1} , ALLOWED_VALUE_SOURCE{0,1}
Children: ALLOWED_VALUE_DESCR, ALLOWED_VALUE_ID, ALLOWED_VALUE_NAME, ALLOWED_VALUE_SHORTNAME, ALLOWED_VALUE_SOURCE, ALLOWED_VALUE_SYNONYMS, ALLOWED_VALUE_VERSION

Used By

Element ALLOWED_VALUES

Source

<xsd:element name="ALLOWED_VALUE">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="ALLOWED_VALUE_ID"/>
      <xsd:element ref="ALLOWED_VALUE_NAME" maxOccurs="unbounded"/>
      <xsd:element ref="ALLOWED_VALUE_VERSION" minOccurs="0"/>
      <xsd:element ref="ALLOWED_VALUE_SHORTNAME" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="ALLOWED_VALUE_DESCR" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="ALLOWED_VALUE_SYNONYMS" minOccurs="0"/>
      <xsd:element ref="ALLOWED_VALUE_SOURCE" minOccurs="0"/>
    </xsd:sequence>
  </xsd:complexType>
</xsd:element>

Sample
