AGREEMENT

Element Information

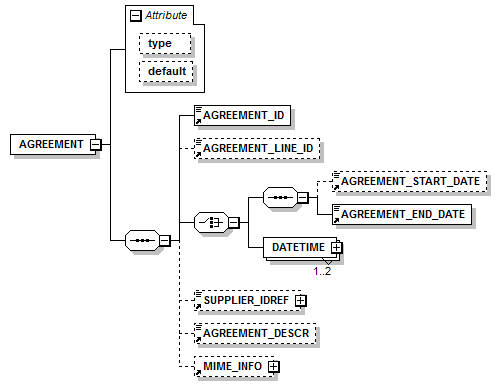

Model

AGREEMENT_ID , AGREEMENT_LINE_ID{0,1} , ((AGREEMENT_START_DATE{0,1} , AGREEMENT_END_DATE) | DATETIME{1,2}) , SUPPLIER_IDREF{0,1} , AGREEMENT_DESCR{0,1} , MIME_INFO{0,1}
Children: AGREEMENT_DESCR, AGREEMENT_END_DATE, AGREEMENT_ID, AGREEMENT_LINE_ID, AGREEMENT_START_DATE, DATETIME, MIME_INFO, SUPPLIER_IDREF

Attributes

QName Type Fixed Default Use Inheritable Annotation
default dtBOOLEAN optional
type restriction of dtSTRING optional

Used By

Element HEADER

Source

<xsd:element name="AGREEMENT">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="AGREEMENT_ID"/>
      <xsd:element ref="AGREEMENT_LINE_ID" minOccurs="0"/>
      <xsd:choice>
        <xsd:sequence>
          <xsd:element ref="AGREEMENT_START_DATE" minOccurs="0"/>
          <xsd:element ref="AGREEMENT_END_DATE"/>
        </xsd:sequence>
        <xsd:element name="DATETIME" maxOccurs="2">
          <xsd:complexType>
            <xsd:complexContent>
              <xsd:extension base="typeDATETIME">
                <xsd:attribute name="type" use="required">
                  <xsd:simpleType>
                    <xsd:restriction base="dtSTRING">
                      <xsd:minLength value="1"/>
                      <xsd:maxLength value="20"/>
                      <xsd:enumeration value="agreement_start_date"/>
                      <xsd:enumeration value="agreement_end_date"/>
                    </xsd:restriction>
                  </xsd:simpleType>
                </xsd:attribute>
              </xsd:extension>
            </xsd:complexContent>
          </xsd:complexType>
        </xsd:element>
      </xsd:choice>
      <xsd:element ref="SUPPLIER_IDREF" minOccurs="0"/>
      <xsd:element ref="AGREEMENT_DESCR" minOccurs="0"/>
      <xsd:element ref="MIME_INFO" minOccurs="0"/>
    </xsd:sequence>
    <xsd:attribute name="type" use="optional">
      <xsd:simpleType>
        <xsd:restriction base="dtSTRING">
          <xsd:minLength value="1"/>
          <xsd:maxLength value="50"/>
          <xsd:pattern value="buyer|supplier|\w{1,50}"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute name="default" type="dtBOOLEAN" use="optional"/>
  </xsd:complexType>
</xsd:element>
