ARTICLE

Element Information

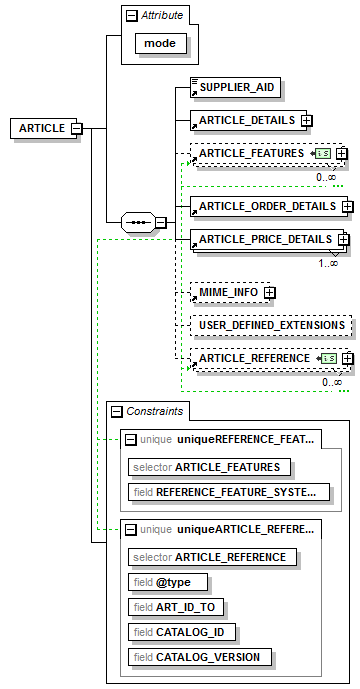

Model

SUPPLIER_AID , ARTICLE_DETAILS , ARTICLE_FEATURES* , ARTICLE_ORDER_DETAILS , ARTICLE_PRICE_DETAILS+ , MIME_INFO{0,1} , USER_DEFINED_EXTENSIONS{0,1} , ARTICLE_REFERENCE*
Children: ARTICLE_DETAILS, ARTICLE_FEATURES, ARTICLE_ORDER_DETAILS, ARTICLE_PRICE_DETAILS, ARTICLE_REFERENCE, MIME_INFO, SUPPLIER_AID, USER_DEFINED_EXTENSIONS

Attributes

QName Type Fixed Default Use Inheritable Annotation
mode restriction of xsd:NMTOKEN required

Used By

Element T_UPDATE_PRODUCTS

Source

<xsd:element name="ARTICLE">
  <xsd:complexType>
    <xsd:sequence>
      <xsd:element ref="SUPPLIER_AID"/>
      <xsd:element ref="ARTICLE_DETAILS"/>
      <xsd:element ref="ARTICLE_FEATURES" minOccurs="0" maxOccurs="unbounded"/>
      <xsd:element ref="ARTICLE_ORDER_DETAILS"/>
      <xsd:element ref="ARTICLE_PRICE_DETAILS" maxOccurs="unbounded"/>
      <xsd:element ref="MIME_INFO" minOccurs="0"/>
      <xsd:element name="USER_DEFINED_EXTENSIONS" type="articleUSER_DEFINED_EXTENSIONS" minOccurs="0"/>
      <xsd:element ref="ARTICLE_REFERENCE" minOccurs="0" maxOccurs="unbounded"/>
    </xsd:sequence>
    <xsd:attribute name="mode" use="required">
      <xsd:simpleType>
        <xsd:restriction base="xsd:NMTOKEN">
          <xsd:enumeration value="new"/>
          <xsd:enumeration value="update"/>
          <xsd:enumeration value="delete"/>
        </xsd:restriction>
      </xsd:simpleType>
    </xsd:attribute>
  </xsd:complexType>
  <!-- ***** START deactivate identity-constraints ***** -->
  <xsd:unique name="uniqueREFERENCE_FEATURE_SYSTEM_NAME">
    <xsd:selector xpath="ARTICLE_FEATURES"/>
    <xsd:field xpath="REFERENCE_FEATURE_SYSTEM_NAME"/>
  </xsd:unique>
  <xsd:unique name="uniqueARTICLE_REFERENCE">
    <xsd:selector xpath="ARTICLE_REFERENCE"/>
    <xsd:field xpath="@type"/>
    <xsd:field xpath="ART_ID_TO"/>
    <xsd:field xpath="CATALOG_ID"/>
    <xsd:field xpath="CATALOG_VERSION"/>
  </xsd:unique>
  <!-- ***** END deactivate identity-constraints   ***** -->
</xsd:element>

Sample
