caption

<div xmlns="http://www.w3.org/1999/xhtml">
  <h3>Caption of a Figure, Table, Etc.</h3>
</div>

Element Information

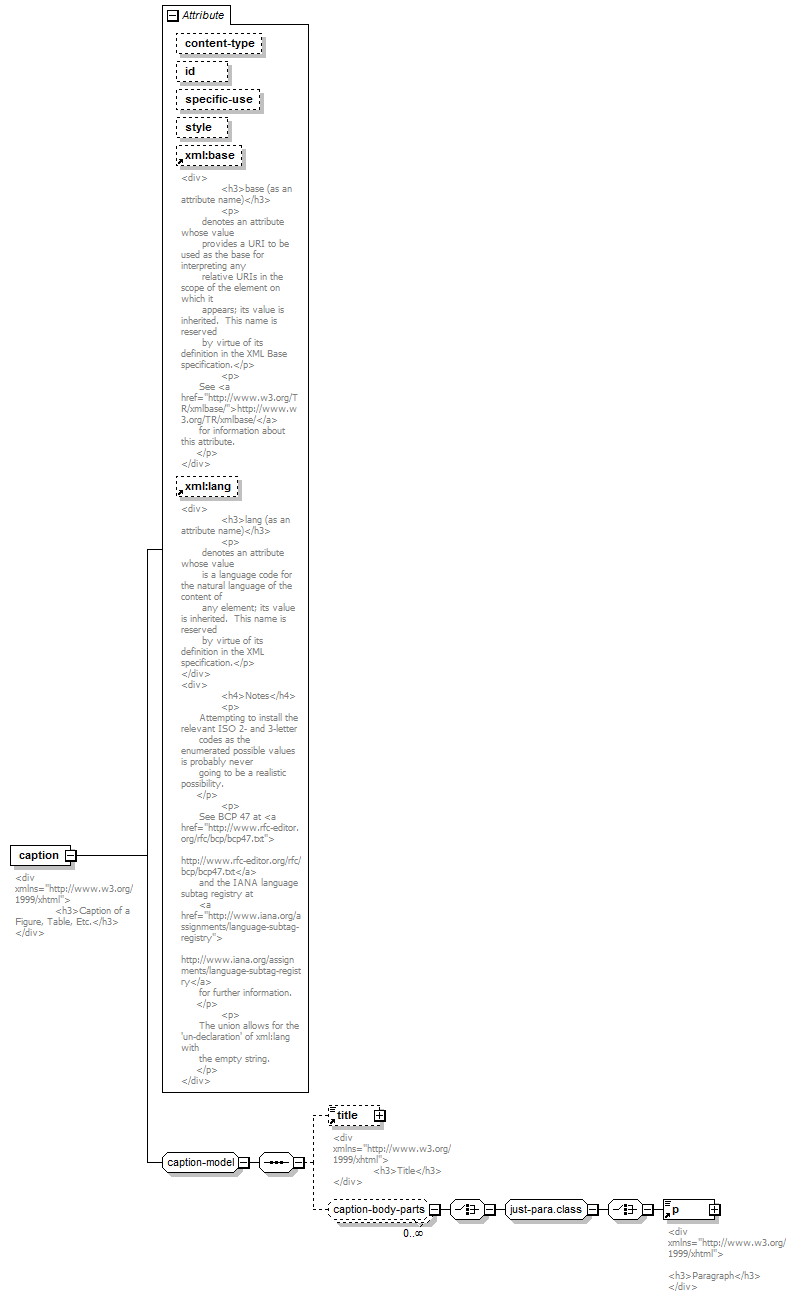

Model

title{0,1} , (p)
Children: p, title

Attributes

QName Type Fixed Default Use Inheritable Annotation
content-type xsd:string optional
id xsd:ID optional
specific-use xsd:string optional
style xsd:string optional
xml:base xs:anyURI optional
<div>
  <h3>base (as an attribute name)</h3>
  <p>denotes an attribute whose value provides a URI to be used as the base for interpreting any relative URIs in the scope of the element on which it appears; its value is inherited. This name is reserved by virtue of its definition in the XML Base specification.</p>
  <p>See
    <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>for information about this attribute.</p>
</div>
xml:lang union of(xs:language, restriction of xs:string) optional
<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>

Used By

Element Groups boxed-text-model, caption.class, table-wrap-group-model

Source

<xsd:element name="caption">
  <xsd:annotation>
    <xsd:documentation>
      <div xmlns="http://www.w3.org/1999/xhtml">
        <h3>Caption of a Figure, Table, Etc.</h3>
      </div>
    </xsd:documentation>
  </xsd:annotation>
  <xsd:complexType>
    <xsd:group ref="caption-model"/>
    <xsd:attribute name="content-type" use="optional" type="xsd:string"/>
    <xsd:attribute name="id" use="optional" type="xsd:ID"/>
    <xsd:attribute name="specific-use" use="optional" type="xsd:string"/>
    <xsd:attribute name="style" use="optional" type="xsd:string"/>
    <xsd:attribute ref="xml:base" use="optional"/>
    <xsd:attribute ref="xml:lang" use="optional"/>
  </xsd:complexType>
</xsd:element>

Sample
