sec-model

Element Group Information

Model

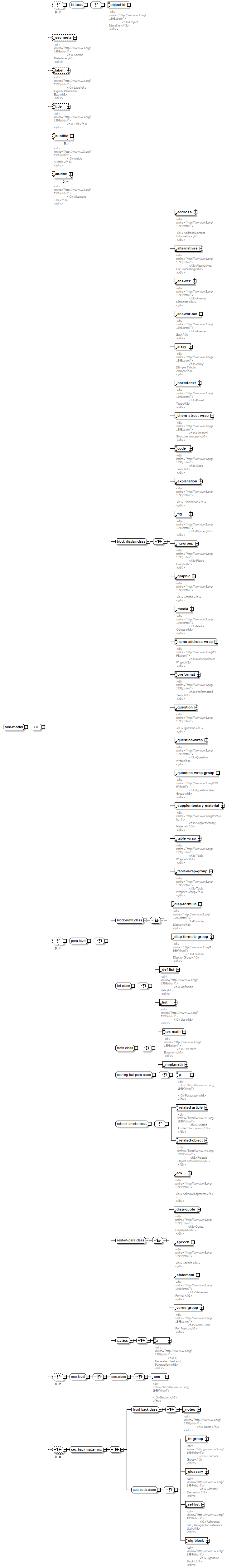

(object-id) , sec-meta{0,1} , label{0,1} , title{0,1} , subtitle* , alt-title* , (address | alternatives | answer | answer-set | array | boxed-text | chem-struct-wrap | code | explanation | fig | fig-group | graphic | media | name-address-wrap | preformat | question | question-wrap | question-wrap-group | supplementary-material | table-wrap | table-wrap-group | disp-formula | disp-formula-group | def-list | list | tex-math | m:math | p | related-article | related-object | ack | disp-quote | speech | statement | verse-group | x) , (sec) , (notes | fn-group | glossary | ref-list | sig-block)

Children: ack, address, alt-title, alternatives, answer, answer-set, array, boxed-text, chem-struct-wrap, code, def-list, disp-formula, disp-formula-group, disp-quote, explanation, fig, fig-group, fn-group, glossary, graphic, label, list, m:math, media, name-address-wrap, notes, object-id, p, preformat, question, question-wrap, question-wrap-group, ref-list, related-article, related-object, sec, sec-meta, sig-block, speech, statement, subtitle, supplementary-material, table-wrap, table-wrap-group, tex-math, title, verse-group, x

Used By

Element

sec

Source

<xsd:group name="sec-model">
  <xsd:sequence>
    <xsd:choice minOccurs="0" maxOccurs="unbounded">
      <xsd:group ref="id.class"/>
    </xsd:choice>
    <xsd:element ref="sec-meta" minOccurs="0"/>
    <xsd:element ref="label" minOccurs="0"/>
    <xsd:element ref="title" minOccurs="0"/>
    <xsd:element ref="subtitle" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="alt-title" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:choice minOccurs="0" maxOccurs="unbounded">
      <xsd:group ref="para-level"/>
    </xsd:choice>
    <xsd:choice minOccurs="0" maxOccurs="unbounded">
      <xsd:group ref="sec-level"/>
    </xsd:choice>
    <xsd:choice minOccurs="0" maxOccurs="unbounded">
      <xsd:group ref="sec-back-matter-mix"/>
    </xsd:choice>
  </xsd:sequence>
</xsd:group>
