BillOfLadingHeaderType

Complex Type Information

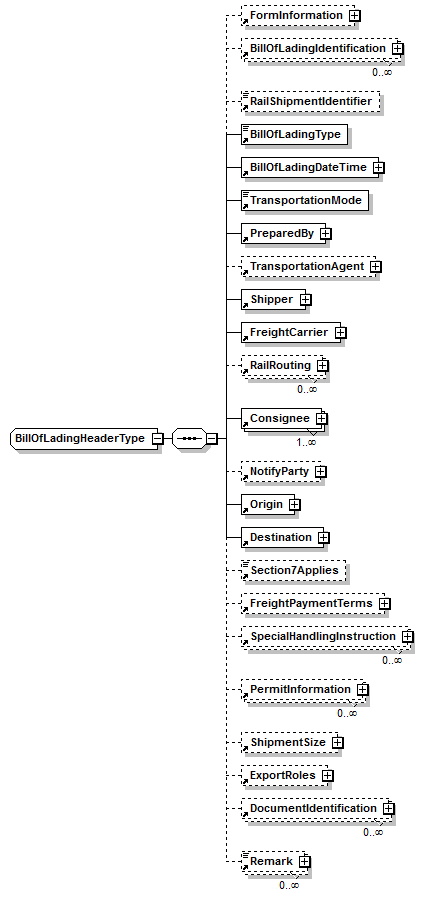

Model

FormInformation{0,1} , BillOfLadingIdentification* , RailShipmentIdentifier{0,1} , BillOfLadingType , BillOfLadingDateTime , TransportationMode , PreparedBy , TransportationAgent{0,1} , Shipper , FreightCarrier , RailRouting* , Consignee+ , NotifyParty{0,1} , Origin , Destination , Section7Applies{0,1} , FreightPaymentTerms{0,1} , SpecialHandlingInstruction* , PermitInformation* , ShipmentSize{0,1} , ExportRoles{0,1} , DocumentIdentification* , Remark*
Children: BillOfLadingDateTime, BillOfLadingIdentification, BillOfLadingType, Consignee, Destination, DocumentIdentification, ExportRoles, FormInformation, FreightCarrier, FreightPaymentTerms, NotifyParty, Origin, PermitInformation, PreparedBy, RailRouting, RailShipmentIdentifier, Remark, Section7Applies, ShipmentSize, Shipper, SpecialHandlingInstruction, TransportationAgent, TransportationMode

Used By

Element BillOfLadingHeader

Source

<xsd:complexType name="BillOfLadingHeaderType">
  <xsd:sequence>
    <xsd:element ref="FormInformation" minOccurs="0"/>
    <xsd:element ref="BillOfLadingIdentification" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="RailShipmentIdentifier" minOccurs="0"/>
    <xsd:element ref="BillOfLadingType"/>
    <xsd:element ref="BillOfLadingDateTime"/>
    <xsd:element ref="TransportationMode"/>
    <xsd:element ref="PreparedBy"/>
    <xsd:element ref="TransportationAgent" minOccurs="0"/>
    <xsd:element ref="Shipper"/>
    <xsd:element ref="FreightCarrier"/>
    <xsd:element ref="RailRouting" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="Consignee" maxOccurs="unbounded"/>
    <xsd:element ref="NotifyParty" minOccurs="0"/>
    <xsd:element ref="Origin"/>
    <xsd:element ref="Destination"/>
    <xsd:element ref="Section7Applies" minOccurs="0"/>
    <xsd:element ref="FreightPaymentTerms" minOccurs="0"/>
    <xsd:element ref="SpecialHandlingInstruction" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="PermitInformation" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="ShipmentSize" minOccurs="0"/>
    <xsd:element ref="ExportRoles" minOccurs="0"/>
    <xsd:element ref="DocumentIdentification" minOccurs="0" maxOccurs="unbounded"/>
    <xsd:element ref="Remark" minOccurs="0" maxOccurs="unbounded"/>
  </xsd:sequence>
</xsd:complexType>
