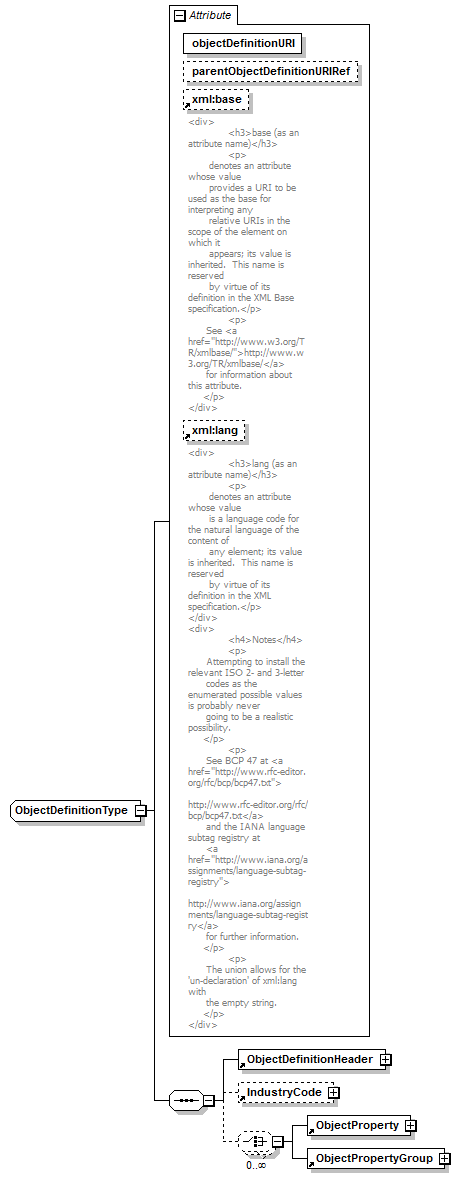

ObjectDefinitionType

Complex Type Information

Model

ObjectDefinitionHeader , IndustryCode{0,1} , (ObjectProperty | ObjectPropertyGroup)
Children: IndustryCode, ObjectDefinitionHeader, ObjectProperty, ObjectPropertyGroup

Attributes

QName Type Fixed Default Use Inheritable Annotation
objectDefinitionURI URIType required
parentObjectDefinitionURIRef URIType optional
xml:base xs:anyURI optional
See http://www.w3.org/TR/xmlbase/ for
information about this attribute.
xml:lang union of(xs:language, restriction of xs:string) optional
Attempting to install the relevant ISO 2- and 3-letter
         codes as the enumerated possible values is probably never
         going to be a realistic possibility.  See
         RFC 3066 at http://www.ietf.org/rfc/rfc3066.txt and the IANA registry
         at http://www.iana.org/assignments/lang-tag-apps.htm for
         further information.

         The union allows for the 'un-declaration' of xml:lang with
         the empty string.

Used By

Element ObjectDefinition

Source

<xs:complexType name="ObjectDefinitionType">
  <xs:sequence>
    <xs:element ref="ObjectDefinitionHeader"/>
    <xs:element ref="IndustryCode" minOccurs="0"/>
    <xs:choice minOccurs="0" maxOccurs="unbounded">
      <xs:element ref="ObjectProperty"/>
      <xs:element ref="ObjectPropertyGroup"/>
    </xs:choice>
  </xs:sequence>
  <xs:attribute name="objectDefinitionURI" type="adsml:URIType" use="required"/>
  <xs:attribute name="parentObjectDefinitionURIRef" type="adsml:URIType" use="optional"/>
  <xs:attribute ref="xml:base" use="optional"/>
  <xs:attribute ref="xml:lang" use="optional"/>
</xs:complexType>
